DEVIATE CYCLES - CLAYMORE 29ER || MORAR BLUE || ELITE

DEVCM290ELTMEDMCCB

CHF 5,911.19
CHF 5,911.19
CHF
Der Versand wird an der Kasse berechnet.

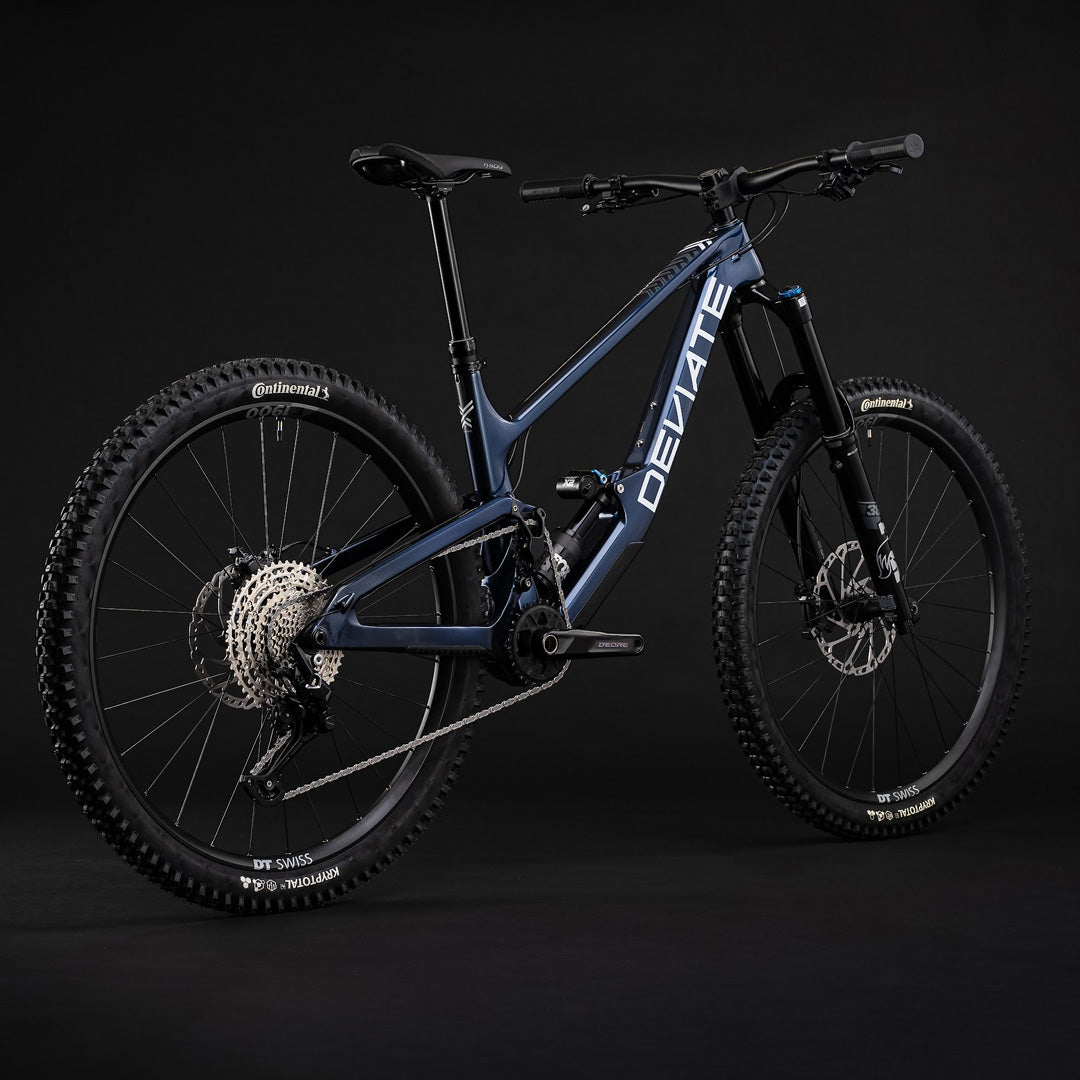

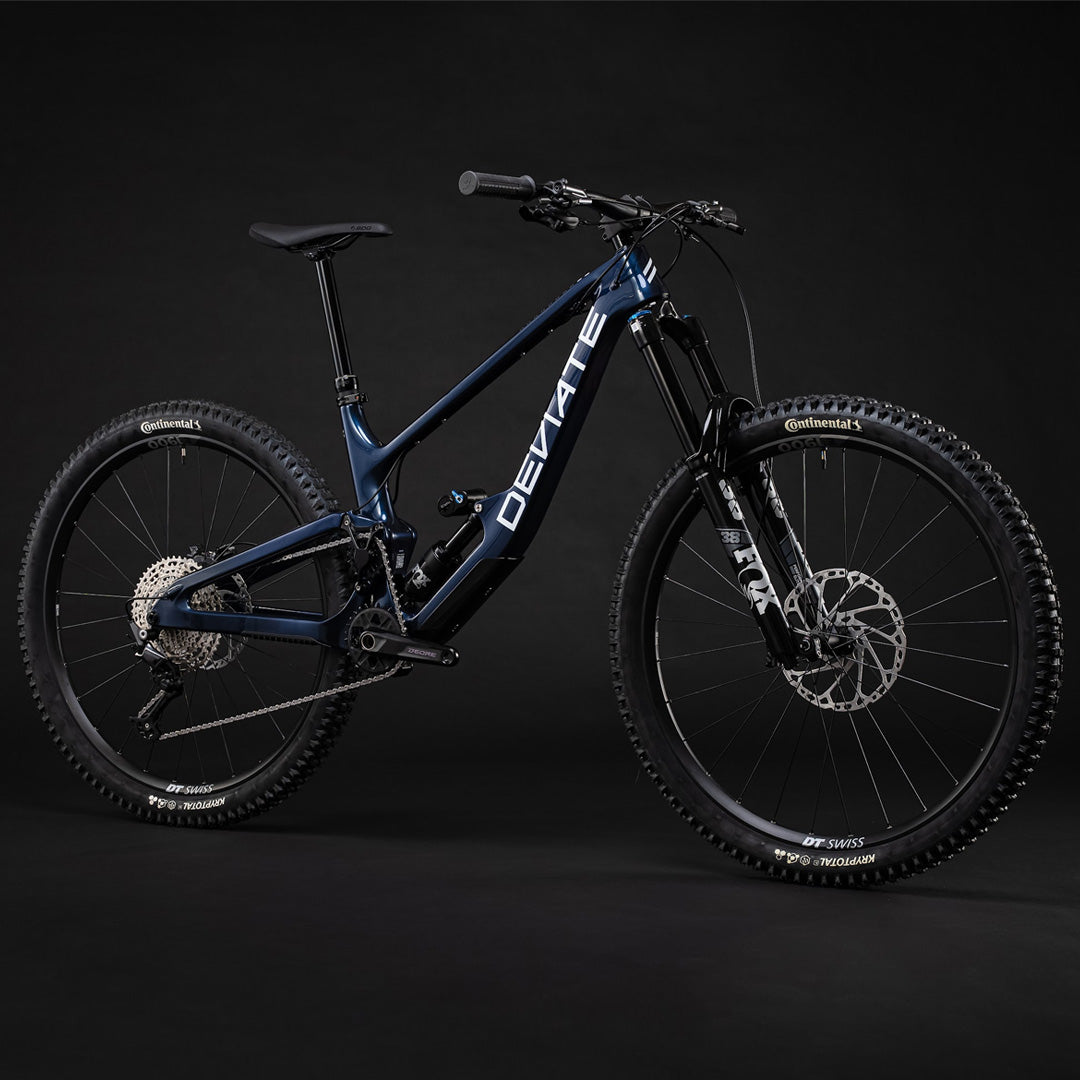

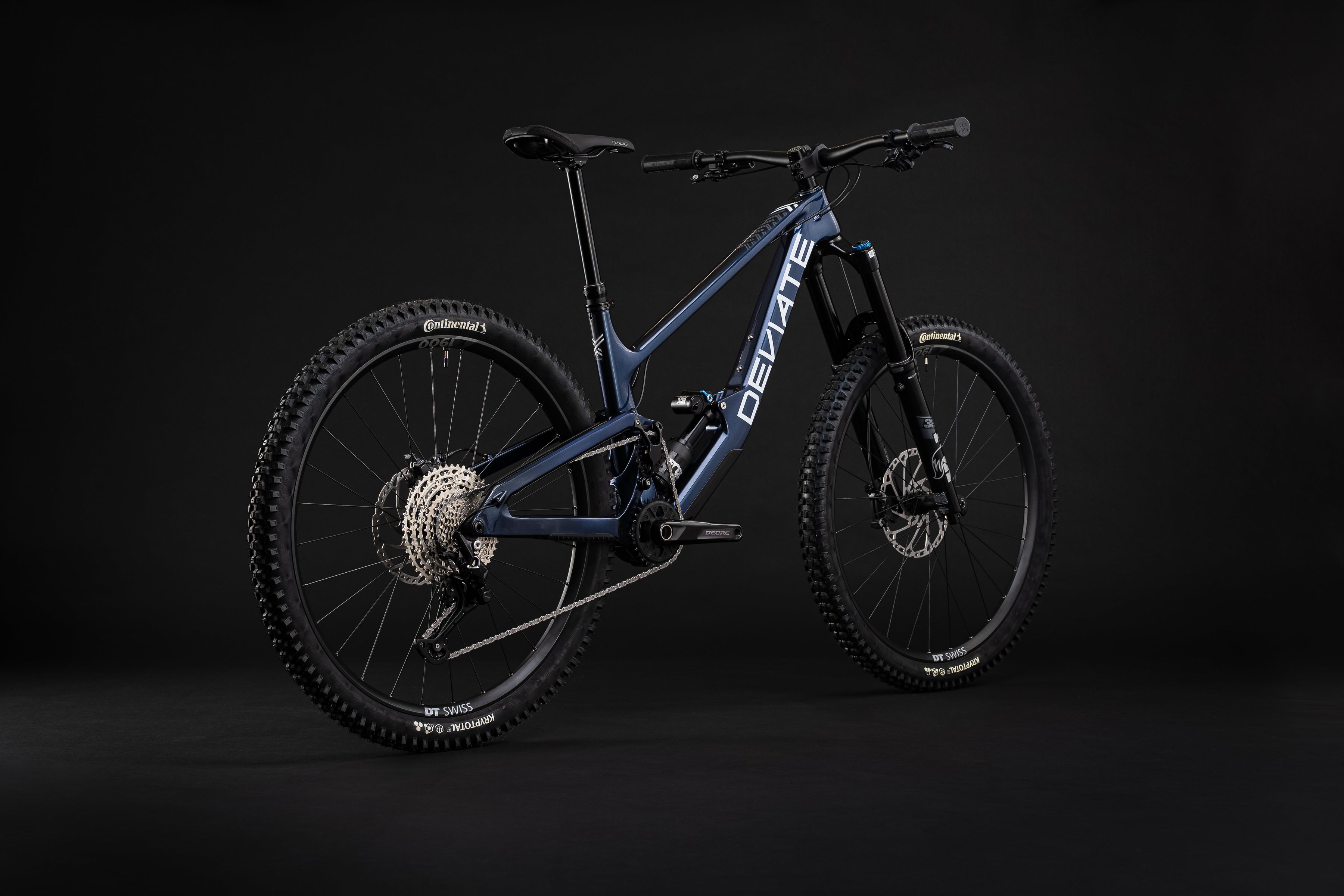

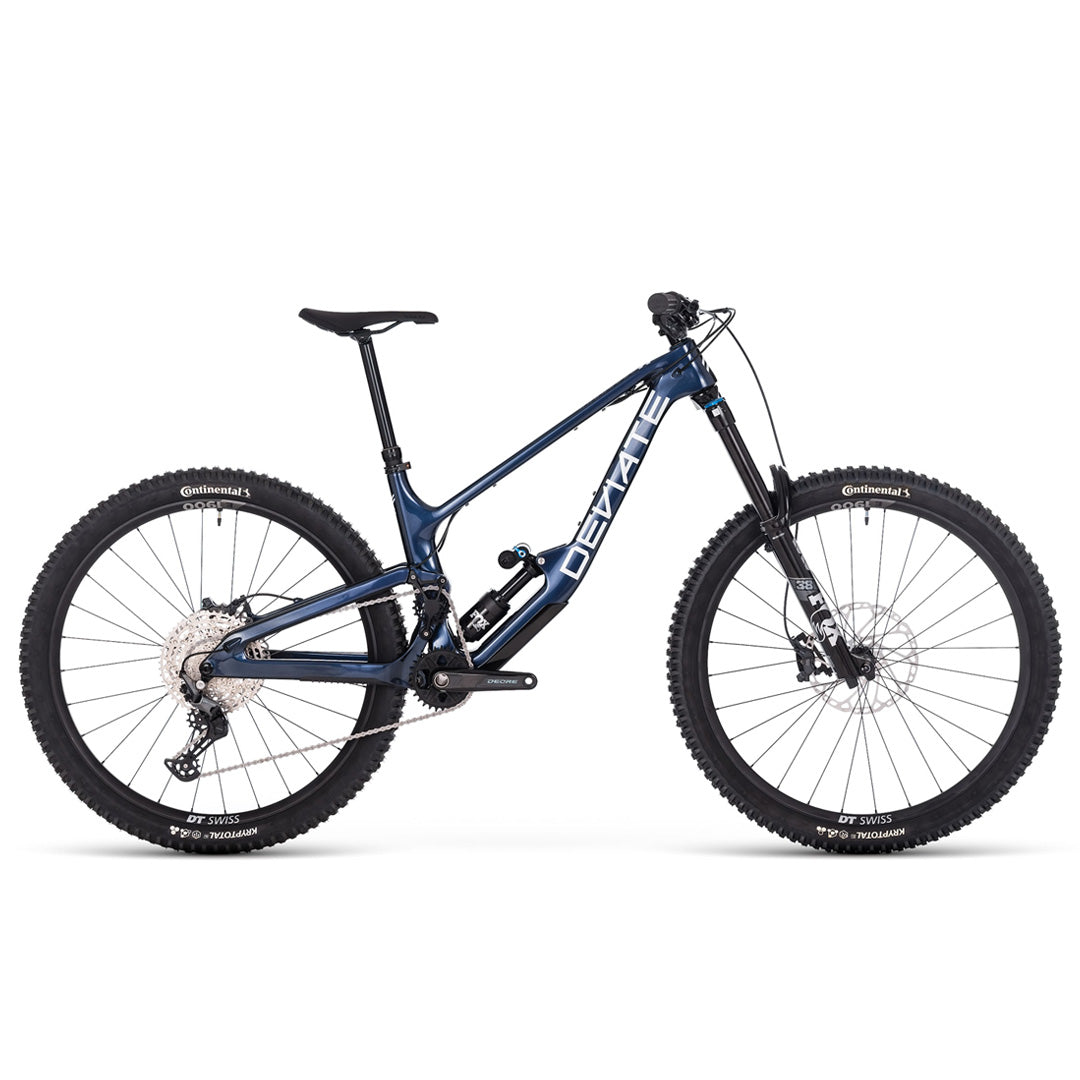

Claymore 29er Elite Carbon Mountain Bike Deore/XT

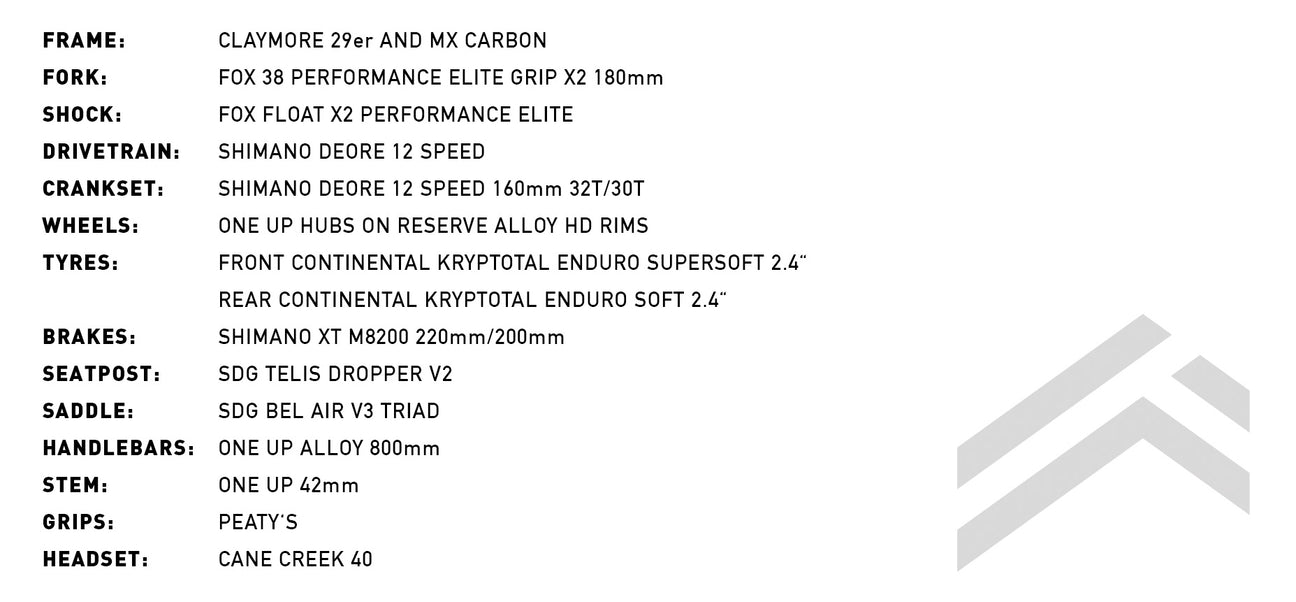

FRAME: CLAYMORE 29er AND MX CARBON

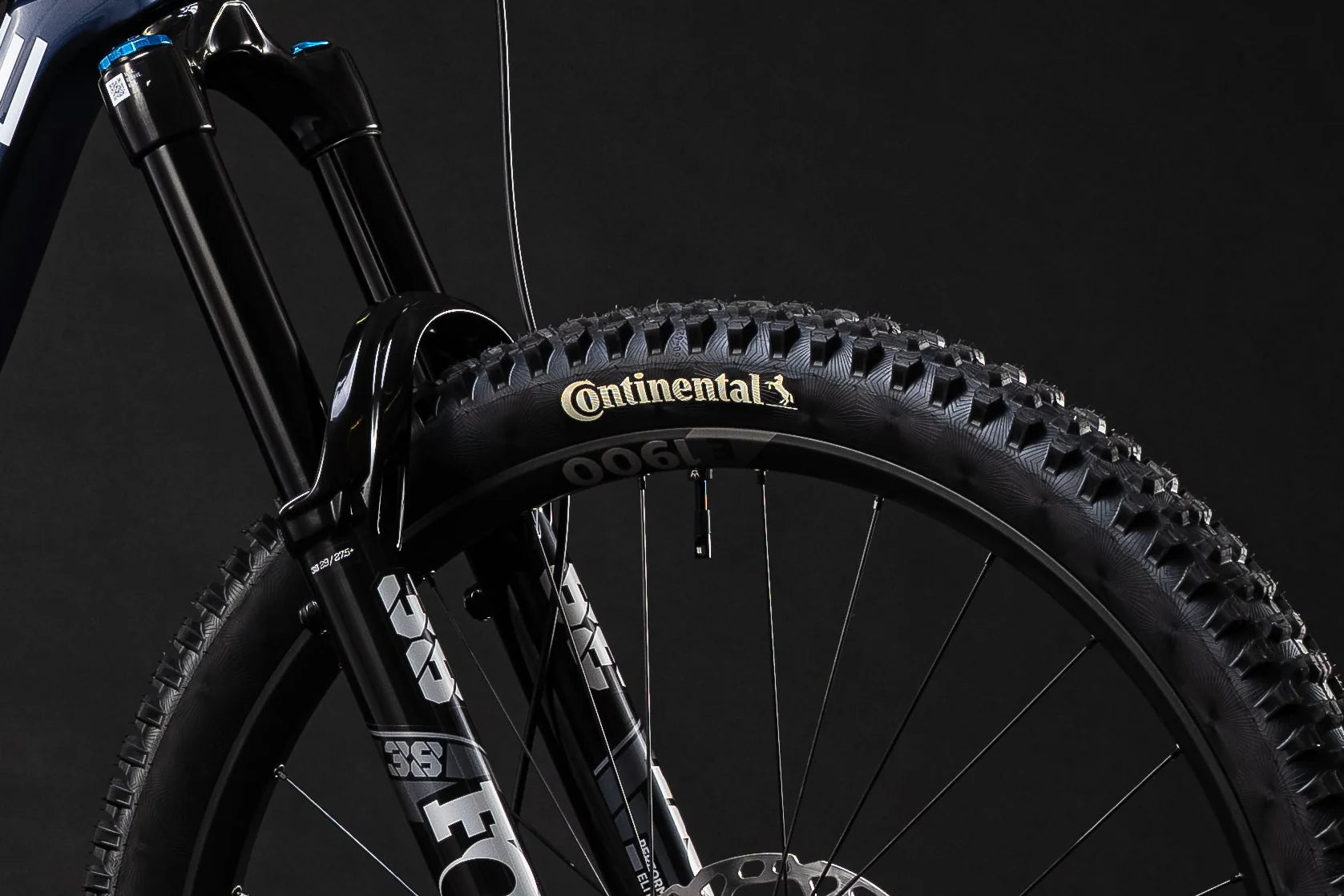

FORK: FOX 38 PERFORMANCE ELITE GRIP X2 180mm

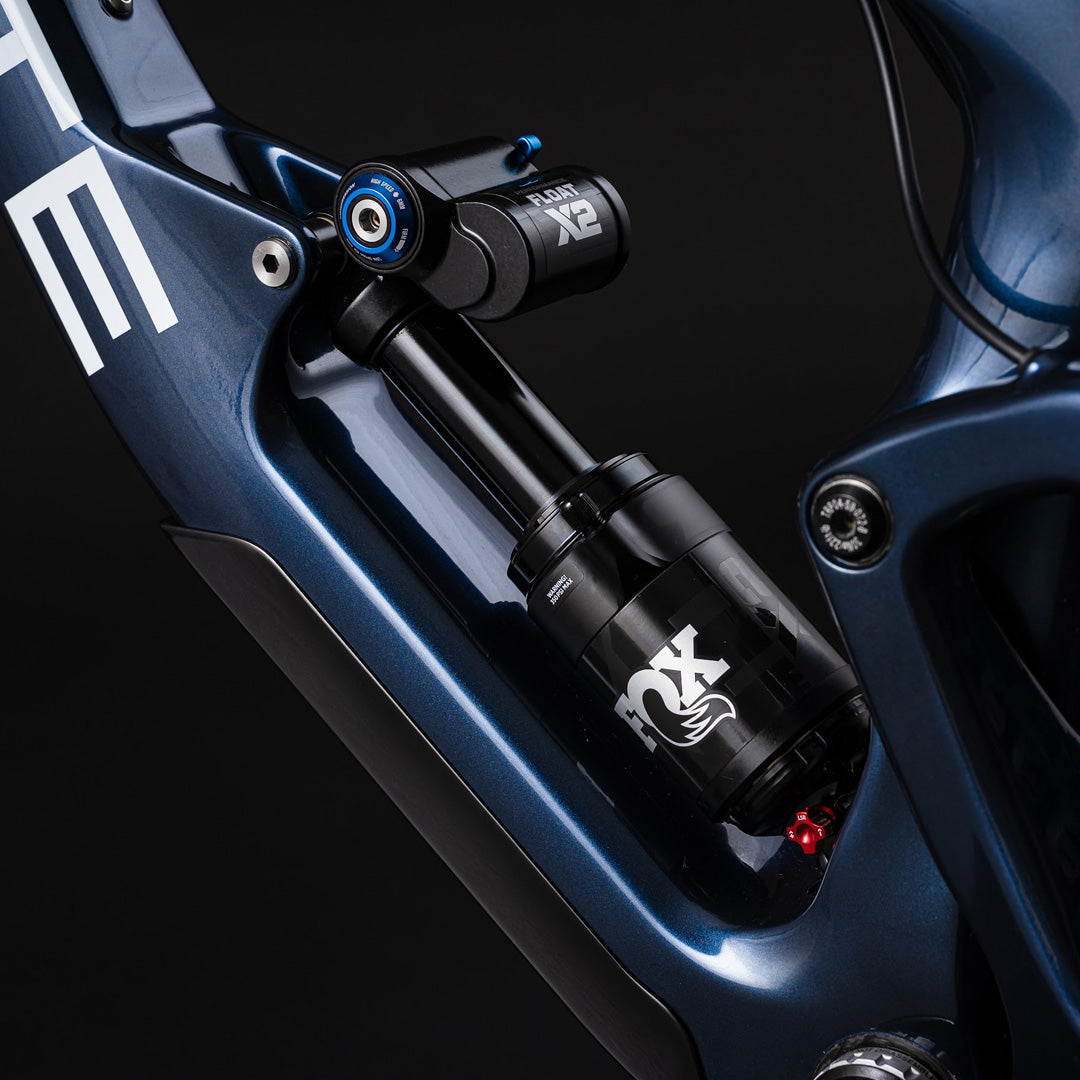

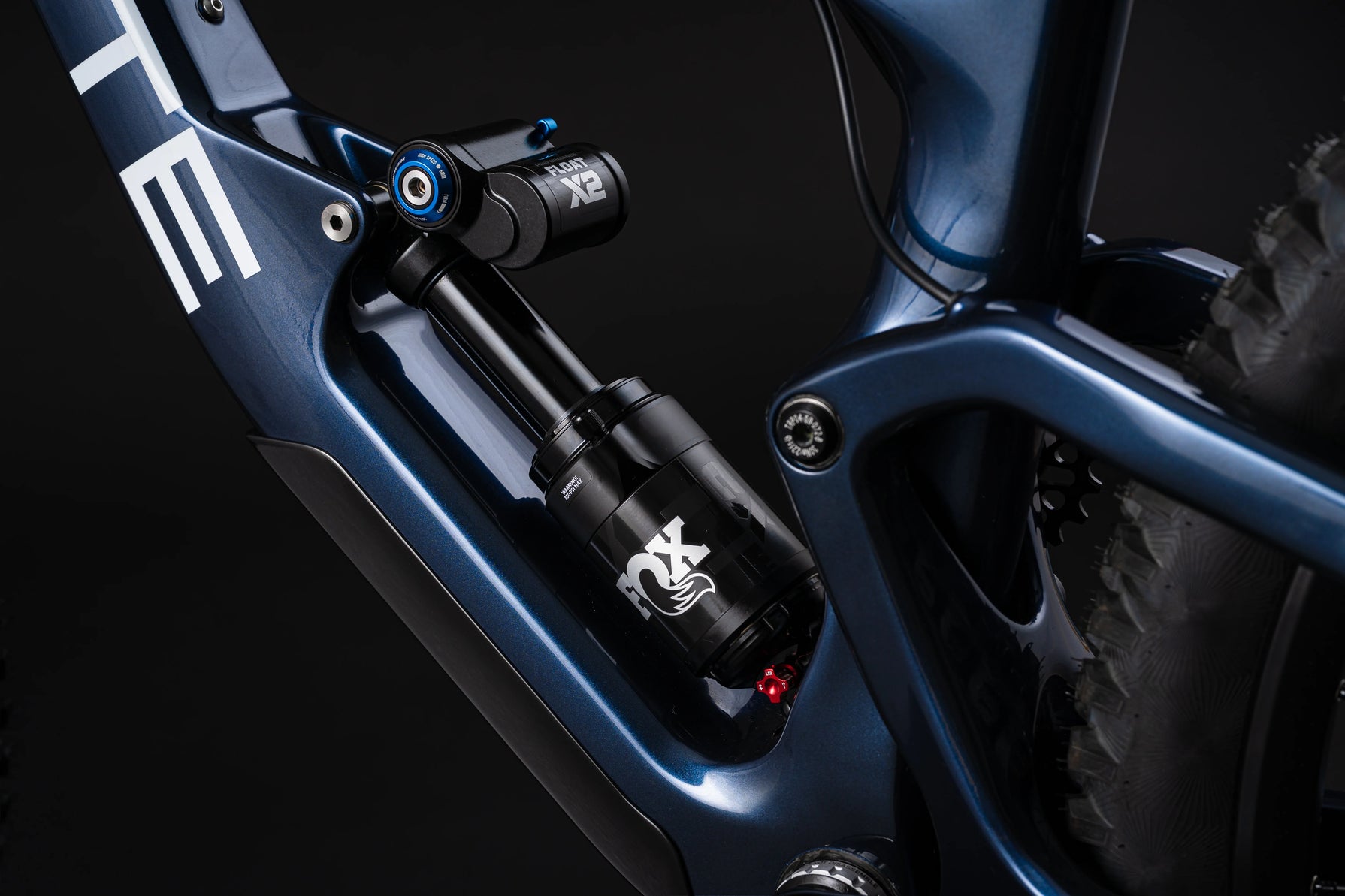

SHOCK: FOX FLOAT X2 PERFORMANCE ELITE

DRIVETRAIN: SHIMANO DEORE 12 SPEED

CRANKSET:  SHIMANO DEORE 12 SPEED 160mm 32T/30T

WHEELS:  ONE UP HUBS ON RESERVE ALLOY HD RIMS

TYRES: FRONT CONTINENTAL KRYPTOTAL ENDURO SUPERSOFT 2.4“

REAR CONTINENTAL KRYPTOTAL ENDURO SOFT 2.4“

BRAKES: SHIMANO XT M8200 220mm/200mm

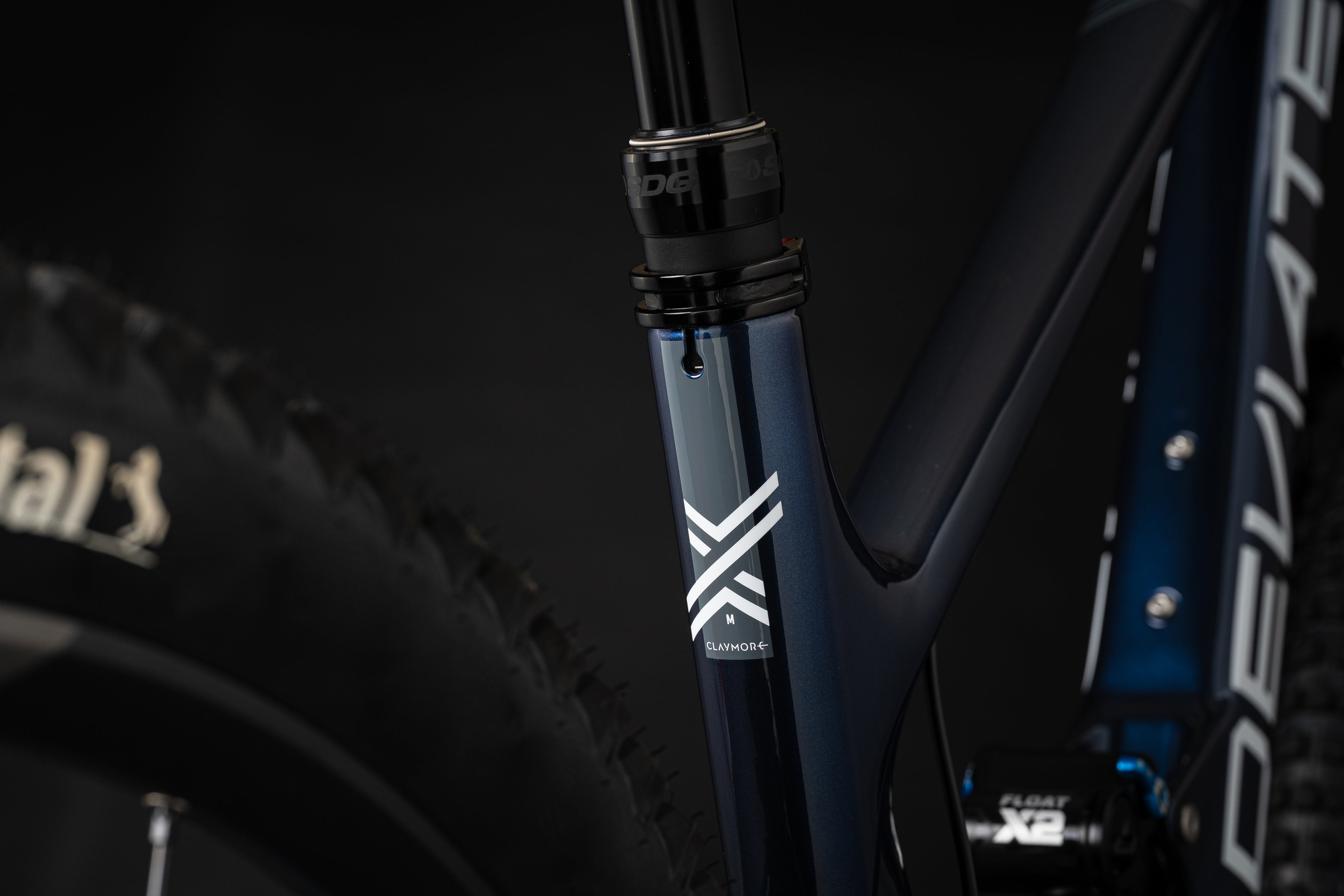

SEATPOST: SDG TELIS DROPPER V2

SADDLE: SDG BEL AIR V3 TRIAD

HANDLEBARS: ONE UP ALLOY 800mm

STEM: ONE UP 42mmGRIPS: PEATY‘S

HEADSET: CANE CREEK 40

Vollständige Details anzeigen

the claymore

Geschwindigkeit ohne Kompromisse

Das neueste Claymore von Deviate behält sein preisgekröntes Design bei und ist jetzt vollständig UDH-kompatibel. Inspiriert von dem mittelalterlichen schottischen Zweihandschwert, das für seine Stärke und Symbolik der rauen Highlands bekannt ist, wurde das Claymore entwickelt, um die herausforderndsten Gelände zu erobern. Es bietet außergewöhnliches Handling und kombiniert Geschwindigkeit, Präzision und Vielseitigkeit für Rennen und Trails.

Key Features

  • Material: Full Carbon Construction
  • Wheel Size: 29”
  • Rear Wheel Travel: 165 mm
  • Front Travel: 170/180 mm
  • Suspension Type: High Pivot
  • Frame Weight: 3.2 kg
  • Sizes: M, L, XL

    Colour: Oban Sand

Tech OVerview

Fully Sealed Bearings
Bearing Grease Ports
18T Chain Idler
Downtube Protector
Twin-lip Wiper Seals Throughout
Threaded BB
Cable gutter system
UDH Compatible

• Lifetime Warranty
• Crash Replacement
• User Manual

SPECIFICATIONS

  • Rear Wheel: 29”, Boost: 148mm * 12mm
  • Fork Compatibility: 29” 170 or 180mm with 44/42mm offset | Fork crown interference with downtube MUST be checked before fitting forks
  • Bottom Bracket: 73mm BSA Threaded
  • Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup
  • Cranks: Minimum Q-factor of 168mm
  • Chainline: 52mm or 55mm options available
  • Chain length: 126 links (widely available, no need to join chains)
  • Max Chainring Size: 36t
  • Shock Size: Metric 230*60mm (Some shocks may be incompatible with our frames, please check this with the shock manufacturer and/or ourselves)
  • Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing
  • Brake Mount: Post Mount 180mm
  • Seatpost Compatibility: Internal dropper routing 34.9”
  • Seat Collar: 38.5mm
  • Mech hanger: UDH or Deviate Derailleur Hanger (Highlander/Claymore)
  • Rear Axle non-UDH : M12xP1.75 | 192mm long | Thread length is 26mm (minimum 20mm)
  • Rear Axle UDH : M12xP1 | 185mm long | Thread length is 14.5mm
